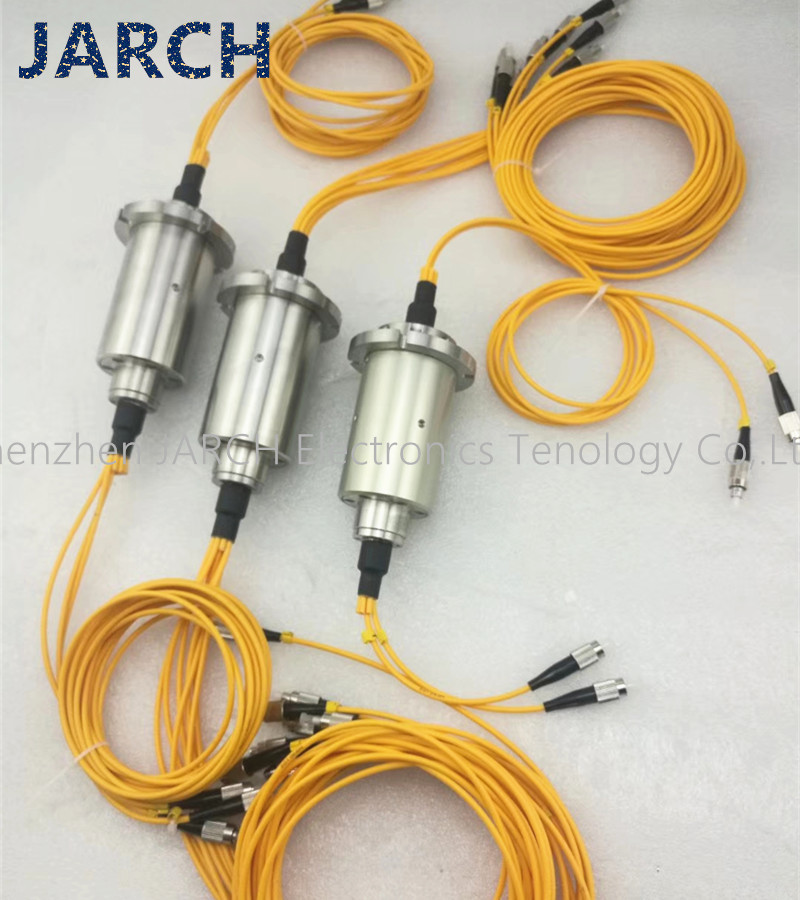

Miniature rotary electrical couplings slipring 1 2 3 4 multil channel fiber optic rotary joint slip ring FORJ
Product Description
JSR-FORJ fibre optic rotary joints are small and compact FORJ with OD 6.80mm * L 28mm, standard, off-the-shelf, available in stock. It could support 1 channel fiber optics(SM/MM) transmitting on 360° rotating. Single-channel (both Single-Mode and Multiple-Mode) rotary joints(FORJ) are the most versatile designs the market has ever seen. The rugged body allows fiber pigtail, ST, or FC receptacles on either the rotor side or the stator side. One can configure the package to fit his need exactly. features extremely low insertion loss and impressive return loss performance for both single mode and multimode fibers.MJ1 are often used with electronic slip ring, call optical-electrical hybrid slipring, transmit power and high speed data
Benefits:
- Using light signal transmission, no electromagnetic leakage.
- Good sealing.
- Resistance to electromagnetic interference
- No contact transmission, no wear and tear.
- Long life, can be up to 10 million RPM.
- No friction, can be used in inflammable and explosive environment.
- Can be used in extreme natural environment.
- High magnetic current interference, also can work normally.
Dimensions:
Specifications:
| Wavelength range | 650-1650 nm | Insertion loss | ≤2 dB (typical: <0.5 dB) |
| Insertion loss ripple | <+/-0.25 dB | Return loss (SM) | ≥40 dB |
| Maximum speed | 1,000 rpm | Pulling strength | 10 N (900 um buffer) |
| Start up torque | <0.01 Nm | Estimated life cycle | 200-400 million revolutions |
| Optical power handling | 23 dBm | Working temperature | -40°C to 85 °C |
| Storage temperature | -50°C to 85 C°C | Package style | Pigtails on both ends |
| Housing material | Stainless steel | Fiber types | Single or multimode w/3 mm jacket (Kevlar/PVC) |
| Connector types | FC, SC, ST, SMA, or LC | Dimensions | 6.8 mm dia. x 28 mm length |
| Weight | 10 g | IP rating | IP 68 for all models,IP66 available |
| Vibration | MIL-STD-167-1A | Mechanical shock | MIL-STD-810G |
Applications:
• Between in undersea robot and control ship
• Between in radar antenna and on-board signal processing system
• With the chariot rotating tower car body console
• Between in welding robot and console
• Remote mechanical input and output devices and control
• The photoelectric theodolite
• The connection between the platform and spacecraft tracking
Installation Instructions:

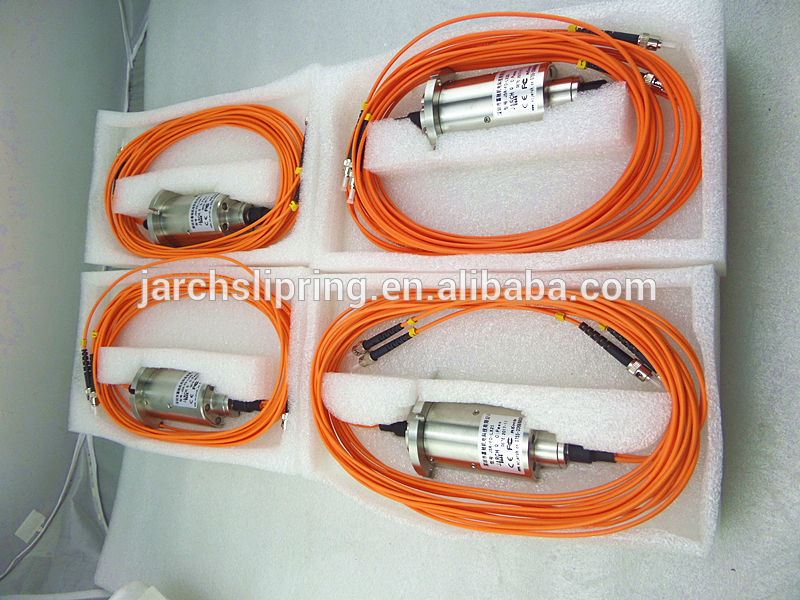

Packaging & Shipping
